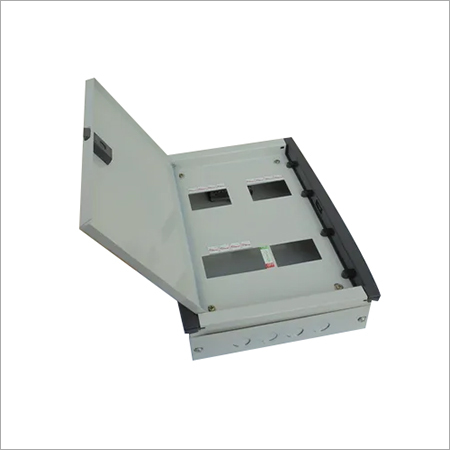

TPN Door Distribution Board

TPN Door Distribution Board Specification

Product Type
Distribution Board

Material
Stainless Steel

Protection Level
IP42

Surface Treatment
Painted

External Size
380 x 315 x 85 mm

Thickness
1.2 mm

Paint Finishing
Epoxy Polyester Powder Coated

Accuracy
1 mm

Dimension (L*W*H)
380mm x 315mm x 85mm

Color
White

Hinges
Concealed

Lock Type
Key Lock

Cable Entry
Top & Bottom

Type
Double Door

Phase
Three Phase

Mounting
Wall Mounted

Busbar Material
Copper

Knockouts
Multiple

Door Type
Single Door

Usage
Industrial

No. of Ways
2 Way

Condition
New

TPN Door Distribution Board Trade Information

Minimum Order Quantity
150 Pieces

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1000 Pieces Per Month

Delivery Time
4 - 5 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Carton Box

Main Domestic Market
All India

About TPN Door Distribution Board

TPN Double Door Distribution Board
A team of dexterous professionals manufactures this TPN Double Door Distribution Board with the use of optimum quality raw materials and advanced techniques. Our offered board is used for power distribution and control applications in various fields like homes, hotels, restaurants, offices, factories etc. It protects electrical appliances from overload and short circuiting conditions. Designed with the magnetic door lock and handle, we provide this board to our prestigious clients in various standard technical specifications.

Key points:

Ease of installation and maintenance with minimum efforts
Seamless coated to ensure a long lasting surface finish
Dimensional uniformity and high durability
Scratch resistant glossy surface

Durable Construction

Crafted from high-grade stainless steel and finished with epoxy polyester powder coating, this distribution board offers excellent corrosion resistance and a long service life, even in demanding industrial environments. Its sturdy 1.2 mm thickness ensures additional durability and protection of internal components.

Enhanced Safety Features

The board is designed with user security in mind, featuring a key-lock single door, concealed hinges, and an IP42 protection level. Multiple knockouts and accurately crafted dimensions provide maximum flexibility during wiring and installation while maintaining electrical safety standards.

Flexible Installation Options

This distribution board simplifies installation with top and bottom cable entries and a wall-mounted design. Its compact size (380 x 315 x 85 mm) allows seamless integration in various industrial settings without occupying excessive space while supporting efficient wiring and maintenance.

FAQ's of TPN Door Distribution Board:

Q: How is the TPN Door Distribution Board typically installed in industrial settings?

A: The distribution board is designed for wall mounting, featuring top and bottom cable entries and multiple knockouts for easy cable routing. Its compact dimensions and accurate sizing make installation straightforward for electricians and maintenance teams.

Q: What are the main benefits of using copper busbars in this distribution board?

A: Copper busbars offer superior electrical conductivity and durability, reducing energy loss and heat buildup. This enhances efficiency and longevity, making the board suitable for demanding industrial applications.

Q: When should a user choose this three-phase, 2-way TPN distribution board?

A: This model is ideal for new industrial setups that require efficient three-phase power distribution with compact requirements. It is particularly effective where secure, multiple circuit outputs, and space-saving solutions are needed.

Q: Where can this distribution board be used effectively?

A: Due to its robust stainless steel construction and IP42 protection rating, this board can be used in a variety of industrial environments-manufacturing facilities, workshops, or production lines-where reliability and safety are crucial.

Q: What surface treatment is applied to this distribution board, and what are its benefits?

A: The board is finished with epoxy polyester powder coating, which provides excellent resistance against corrosion, chemical exposure, and wear. This ensures an attractive appearance and long operational life.

Q: How does the security mechanism enhance safety?

A: Equipped with a key-lock single door and concealed hinges, the board limits unauthorized access to internal components, helping to protect both equipment and personnel from tampering or accidental contact.

Q: What is the process of cable entry into this distribution board?

A: The design includes multiple knockouts and dedicated entries at both the top and bottom, allowing smooth and flexible cable management. This helps streamline installation and subsequent maintenance.
